RouterBoard 411AH (Lisensi Level 4CF-AP, CPU Atheros AR7161 680MHz) dengan Wireless MiniPCI R52 yang dipadukan dengan embedded antenna MikroPoynt 2,4 GHz 11dbi, menghasilkan unit wireless yang ringkas. Sudah termasuk adaptor 24V dan PoE.

Aplikasi Penggunaan:

• Indoor Access Point/Hotspot
• Outdoor (short range) CPE

Spesifikasi Routerboard 411AH :

• CPU: Atheros AR7161 680MHz
• Memory: 64MB DDR onboard memory chip
• Root loader: RouterBOOT, 1Mbit Flash chip
• Data storage: 64MB onboard NAND memory chip
• Ethernet ports: 1 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X
• Serial ports: One DB9 RS232C asynchronous serial port
• LEDs: Power, user LED
• Power options: Power over Ethernet: 10..28V DC (except power over datalines);
• Power jack: 10..28V DC; Overvoltage protection
• Dimensions: 105mm x 105mm (4.13 in x 4.13 in)
• Temperature: Operational: -20°C to +70°C (-4°F to 158°F)
• Humidity: Operational: 70% relative humidity (non-condensing)
• Currently supported OS: RouterOS 3.0

Spesifikasi MikroPoynt 2,4GHz :

• Frequency: 2.4 – 2.5 GHz

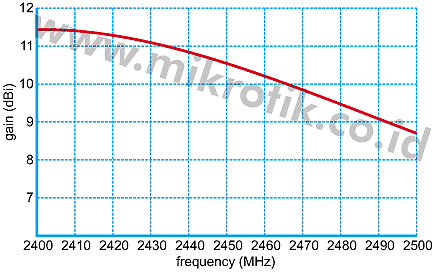

• Gain: 11.6 dBi
• Gain (Min over the band): 8.5 dBi
• VSWR: <>
• Feed Power Handling: 10 W
• E-Plane 3 dB Beamwidth: 44 degrees
• H-Plane 3 dB Beamwidth: 54 degrees
• Front to Bank (F/B Ratio): 14 dB
• Nominal input impedance: 50 ohm
• Polarisation: Vertical
• Connector Type: U.fl
• Dimensions (l x w x d): 234 x 134 x 105 mm
• Mounting: Wall, window or pole
• Materials: ABS
• Wind Loading: 120 km/h
• Temperature Range: -20 to 70 degrees celcius
• Water Ingress: Rating IP67
• Rain Rating (mm/hr): 100 mm/hr
• RoHs: Yes
